| Model |

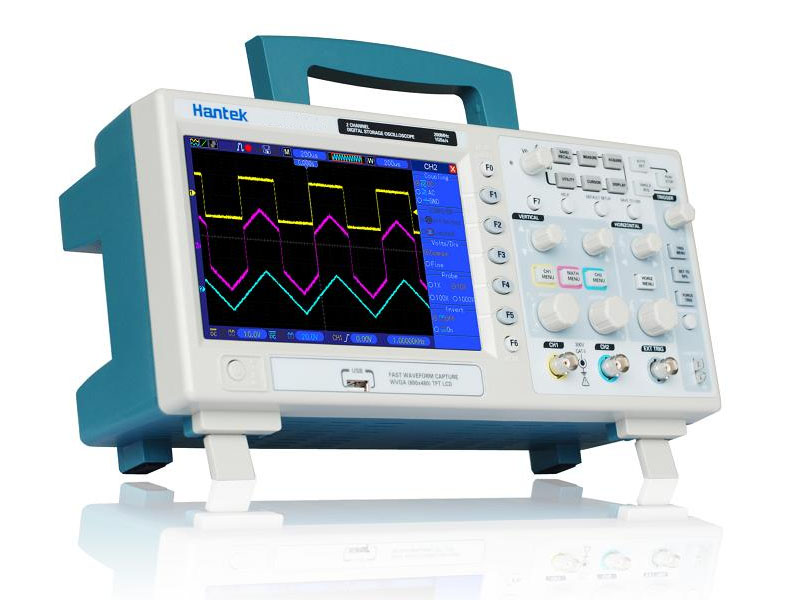

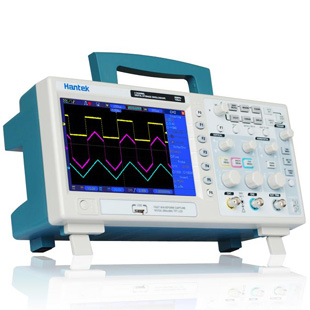

DSO5202BMV |
| Bandwidth |
200MHz |
| Real-time Sample Rate |
1GSa/s |
| Equivalent Sampling Rate |
25GSa/S |
| Record Length(Sample Points) |
Single-channel: Maximum 2M
Dual-channel: Maximum 1M
(4K,16K,40K optional) |
| SEC/DIV Range |
4nS/div-40S/div (in a 2, 4, 8 sequence) |
| Delay Time Accuracy |
500ps |
| A/D Converter |
8-bit resolution, each channel sampled simultaneously |
| VOLTS/DIV Range |
2mV/div〜5V/div at input BNC |
| Position Range |
±50V(5V/div),±40V(2V/div〜500mV/div),
2V(200mV/div〜50mV/div)±400mV(20mV/div〜2mV/div) |
| Rise Time at BNC |
≤3.5ns |
| DC Gain Accuracy |
±4% for Sample or Average acquisition mode, 5mV/div to
2mV/div
±3% for Sample or Average acquisition mode, 5V/div to 10mV/div |
Trigger Sensitivity
(Edge Trigger Type) |
DC: CH1/CH2(Typical) 1div from DC to 10MHz;1.5div from
10MHz to Full
EXT（Typical） 200mV from DC to 40MHz
EXT/5（Typical） 1V from DC to 40MHz
AC: Attenuates signals below 10Hz
HF Reject: Attenuates signals above 80kHz
LF Reject: Attenuates signals below 150kHz
Noise Reject: Reduces trigger sensitivity |
| Trigger Level Range |
CH1,CH2: ±8 divisions from center of screen
EXT: ±1.2V EXT/5: ±6V |
Trigger Level Accuracy,
typical (Accuracy is for signals having rise and fall times ≥20ns) |
CH1,CH2: ±(0.3div×V/div) (within ±4 divisions from
center of screen)
EXT: ±(6% of setting + 40mV)
EXT/5: ±(6% of setting + 200mV) |
| Holdoff Range |
100ns-10s |
| Edge |
Trigger on the rising or falling edge |
| Pulse Width |
Trigger (when >,<,=,≠) on positive or negative
pulsesPulse Width Range: 20ns-10s |
| Video |
Trigger on an NTSC, PAL, or SECAM standard video
signalLine Range: 1-525 (NTSC), 1-625 (PAL/SECAM) |
| Slope |
Trigger (when >,<,=,≠) on a positive or negative
slopeSet Time: 20ns–10s |
| Overtime |
from the rising or falling edge
Set Time: 20-10s |
| Alternate |
Internal trigger on edge, pulse width, video or slope |
| Cursors |
Manual: The difference between voltage cursors △V; the
difference between time cursors △T; 1/△T calculated by Hz.
Tracing: The voltage and time at a waveform point |
| Automatic |
Pk-Pk, Max, Min, Mean, Cyc RMS, Frequency, Period, Rise
Time, Fall Time, Positive Width, Negative Width |
| Display Type |
Right angle 7"TFT 16-digit color LCD |
| Resolution |
800*480 dots |
| Contrast |
16 gears, with the progress bar to show adjustment |
| Interface |
USB host and USB slave |
| Voltage |
100-120VACRMS(±10%)，45Hz to 440Hz，CATⅡ
120-240VACRMS(±10%)，45Hz to 66Hz，CATⅡ |
| Power |
<30W |
| Fuse |
2A, T rating, 250V |
| Dimension |
313x108x142(mm) |
| Weight |
2.08KG (exclusive of packing and accessories) |
| Accessories |
Passive Probe×2(1:1,10:1), Software
CD-ROM, Power Adapter, User's Guide, Soft Carry Bag
※付属説明書、ソフトウェアは英語となります。 |
